getting_started

Toolbar Buttons Overview

If you want to know the function of each toolbar button, press or button on the right.


Adding Objects

On tablet, tap button, window with object library appears, tap object to add it to the project.

To add an object on desktop computer, find it in the object library, and drag it to the project.

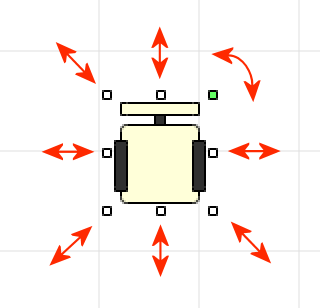

Resizing Objects

Click or tap to select the object.

Use small white squares to resize and green square to rotate the object.

On desktop, right-click on the object to access object's properties and other functions.

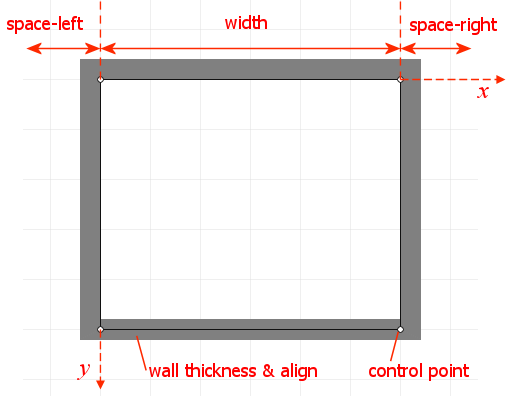

Understanding Project Dimensions

Basic project size is set as width and height in Project Properties . There is a fixed space around the project defined there as well.

Switch into Wall Editor to add more walls to make a more complex shape of the room, or add more rooms.

Each wall lies between two control points. Neighboring walls share one control point. It is crucial to connect walls like this, and not to have duplicate control points. To check this, each control point changes color according to number of walls using it.

Each wall can have different thickness, and is aligned relative to the line between control points. Both is set in wall properties in Wall Editor (right click in desktop mode, or tap wall in touch mode).
